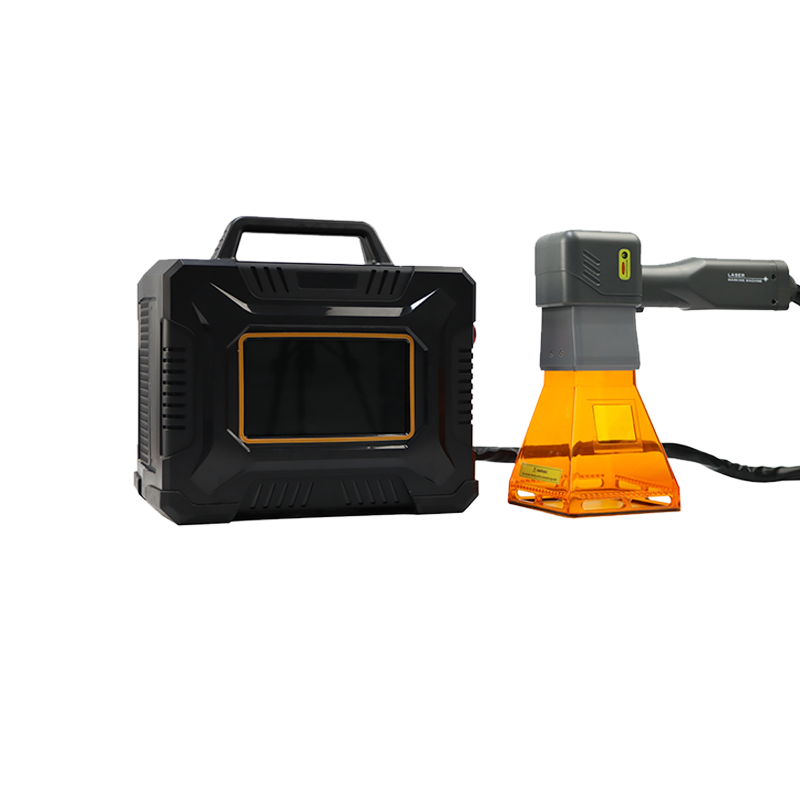

The maximum power has been increased to 60W, resulting in higher marking accuracy and faster speed.

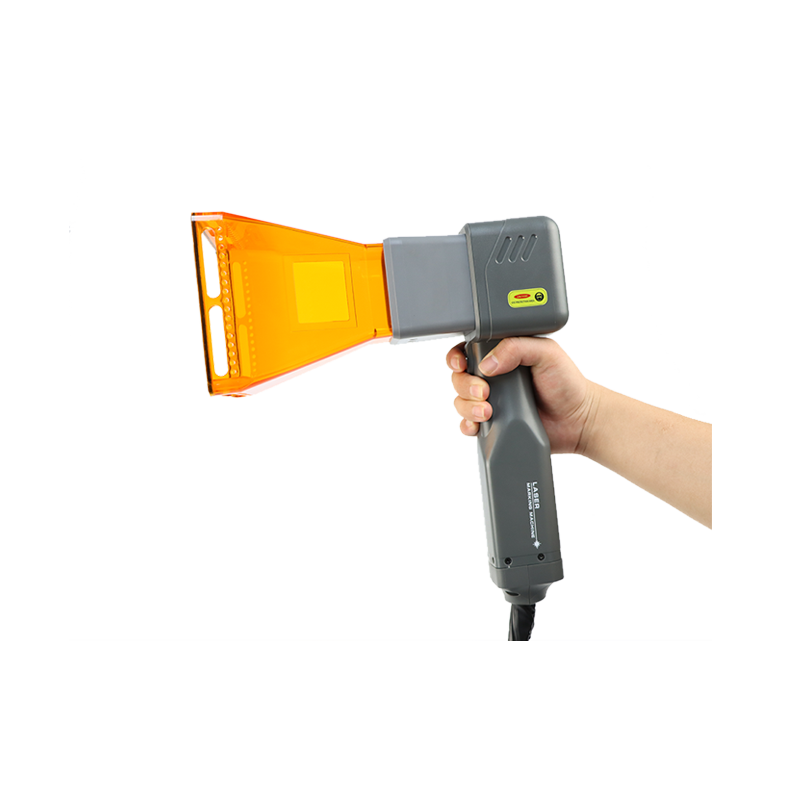

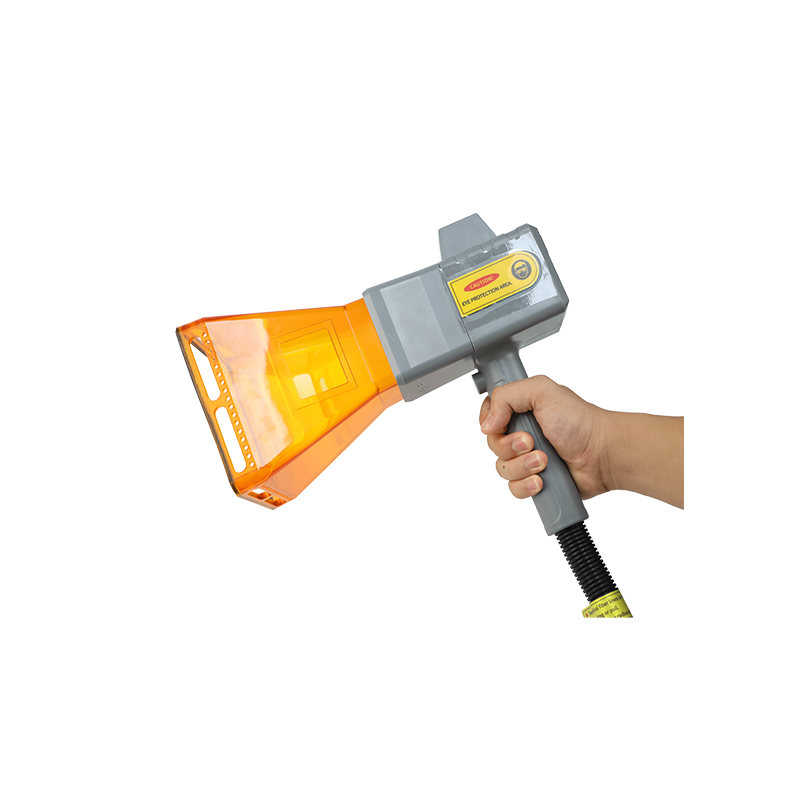

The marking gun head adopts a fully protected design, meeting the EU CE safety standards.
Our self-developed Linux system is easy to operate, with a 7-inch high-definition capacitive screen and sensitive editing.
The software supports secondary development and can be linked with MES, ERP, and PLC.
Can be connected to an external mouse, keyboard, barcode scanner, computer, and controlled through a mobile app.
The lithium battery adopts a replaceable design, supporting simultaneous charging and use.
Highly integrated, can be paired with a robotic arm to achieve automated marking.
Small size, light weight, can be operated with one hand, suitable for multiple mobile scenarios such as workshops, warehouses, and outdoors, achieving 360 ° blind spot marking.
Fast speed, strong stability, easy to achieve fine marking, high integration level, can be matched with a robotic arm to achieve automated marking.

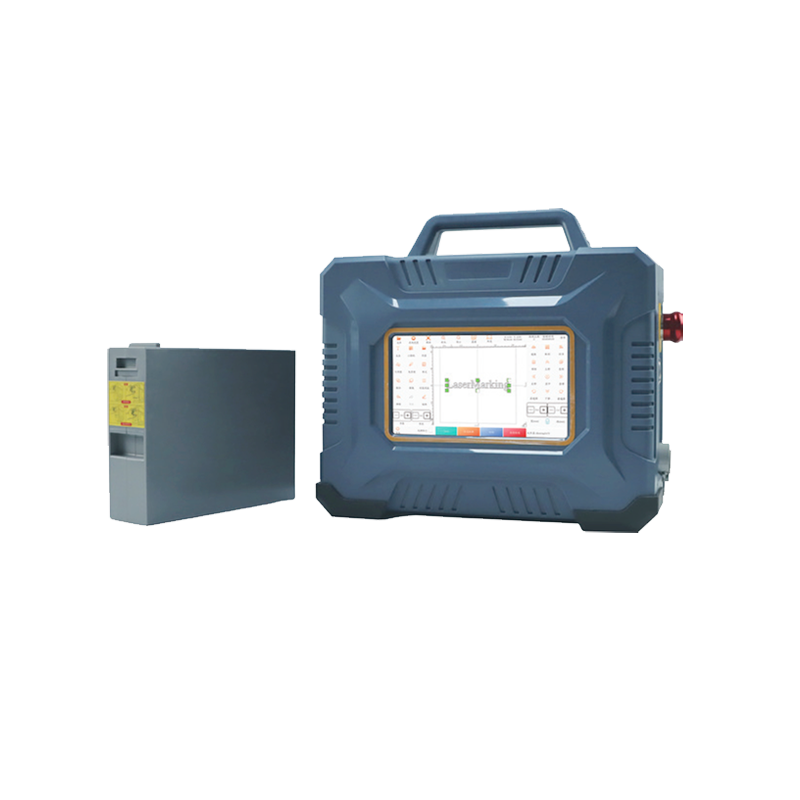

7-inch touch capacitive screen design, self-developed Linux system, one click efficient operation, zero consumables, low-cost maintenance.
| Specifications | Parameter |
|---|---|
| Material of the whole machine | Environmental protection engineering plastics |
| Laser Type | Fiber laser generator |
| Laser Power | 20W/30W/50W/60W |
| Laser Wavelength | 1064nm |
| Maximum pulse energy | ≥1.4mJ |
| Cooling System | air cooling |
| Operating System | Linux |
| Frequency regulation Scope | 45-170Khz(adjustable） |
| Label Scope | standard configuration 100×100mm (50×50mm/150×150mm） |
| Positioning Method | Red light positioning |
| Support marking types | Text, QR codes, vector graphics, digital dates, bitmap, geometric shapes, etc. can be combined and edited, supporting hand drawn, spiral line, and Lissajous curve drawing |
| System Language | Chinese, English, Japanese, Russian, Italian, Spanish, Portuguese, Traditional Chinese, Korean, French, Arabic, German, Polish, Czech, Thai, etc |
| Power Supply Voltage | AC90-240V、50/60HZ |
| Power Supply Method | Plug in/battery (supports charging while using) |
| Maximum Power Consumption | 200W |
| Machine Weight | Power supply model: 6-9kg Lithium battery model: 9-12kg |
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
Widely used in industries such as mechanical parts processing, electronic and electrical production, medical equipment, advertising signs, and building materials.
Application materials include stainless steel, carbon steel, aluminum oxide, aluminum alloy, aluminum, copper, iron, gold, silver, hard alloy, painted metal, other metals, acrylic, etc pvc、 Leather, painted wooden boards, etc.
除氧化物

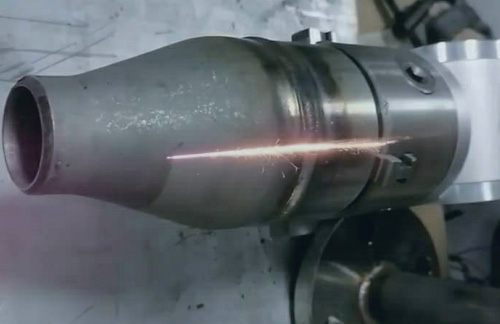

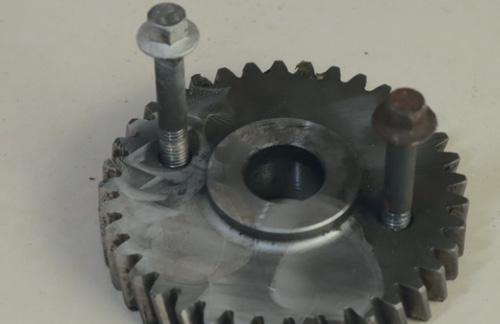

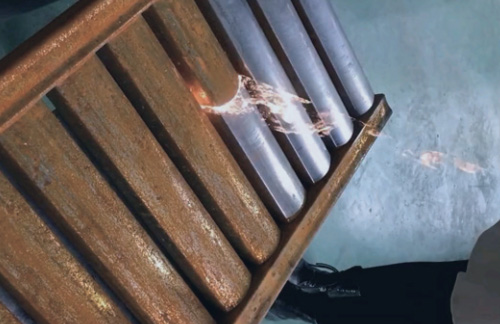

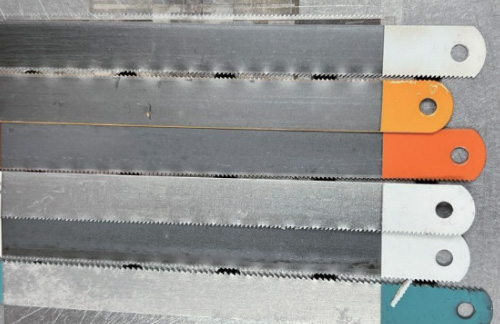

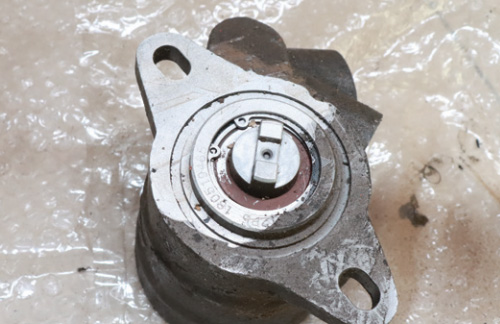

除锈
除涂层
除油污

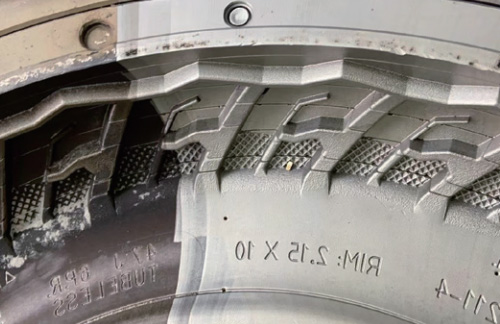

除模具
除油漆
